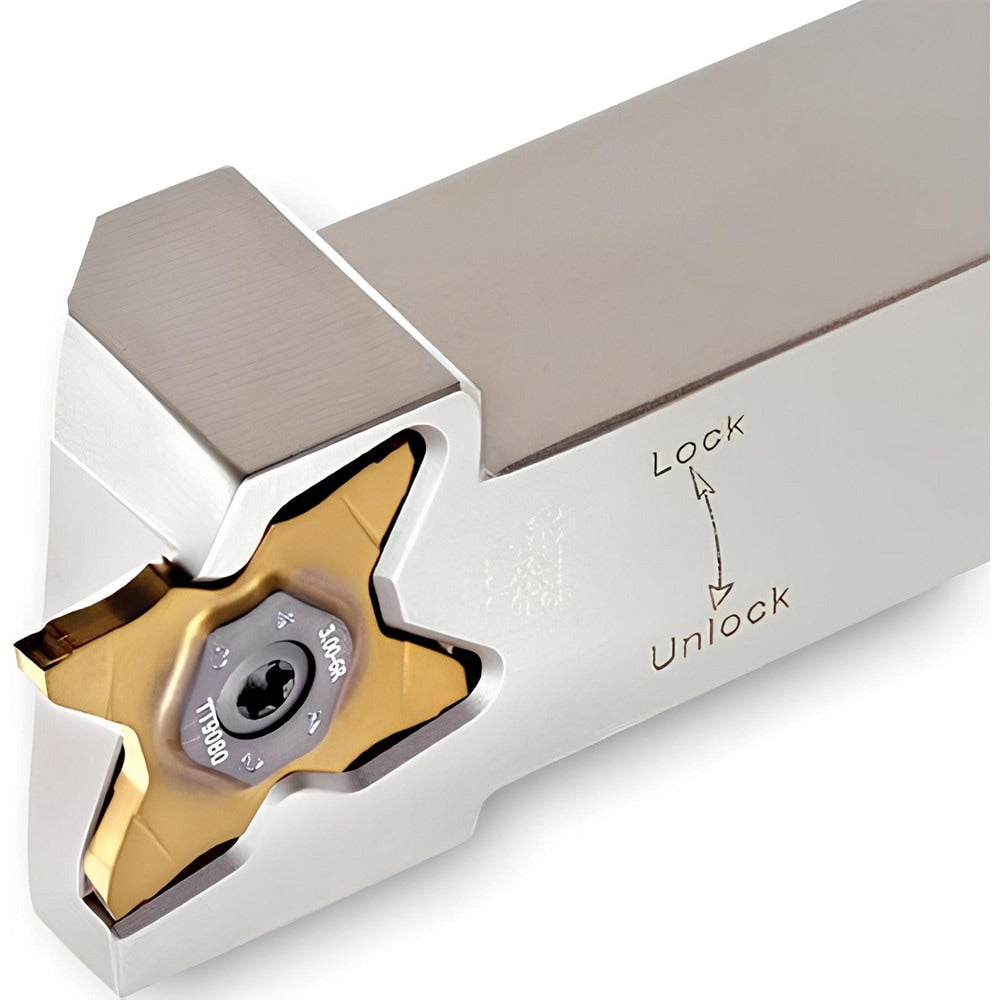

Brand: Ingersoll Cutting Tools / Part #: 6174109

Brand: Ingersoll Cutting Tools / Part #: 6174109


Item #: 96426689
Brand: Ingersoll Cutting Tools
Model #: 6174109

Product Specifications

Internal or External External
Maximum Depth of Cut (Decimal Inch) 0.3930
Hand of Holder Right Hand
Maximum Groove Width (Decimal Inch) 0.1570
Minimum Groove Width (Decimal Inch) 0.0590
Toolholder Style TQHR
Tool Material Steel
Insert Holding Method Screw
Compatible Insert Size Code 34
Insert Compatibility TQC34..
Shank Height (Inch) 3/4
Shank Length (mm) 97.000
Shank Width/Diameter (Inch) 3/4
Series TQHR
Overall Length (mm) 127.0000
Cutting Tool Application Grooving; Parting
Back of Bar to Cutting Edge (Decimal Inch) 0.6770
Primary Workpiece Material Universal
Manufacturers Catalog Number TQHR19-34
Complete Insert Compatibility TQC34..
Center to Cutting Edge (Decimal Inch) 0.6770
Number of Inserts Included in Order 1
Coolant Through No
$ 157.41
