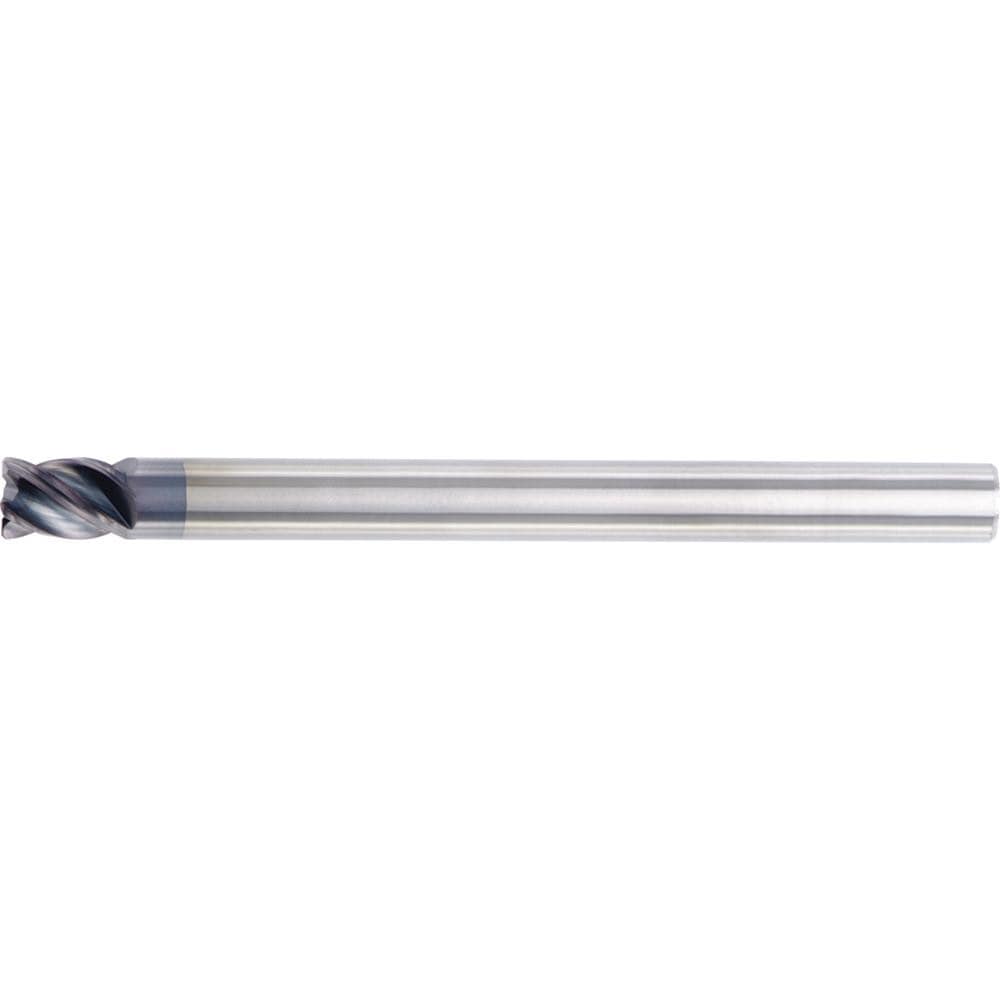

Brand: Widia / Part #: 2831918

Brand: Widia / Part #: 2831918


Item #: 97929566
Brand: Widia
Model #: 2831918

Product Specifications

Mill Diameter (Inch) 1/2
Chamfer Width (Decimal Inch) 0.0200
Coating/Finish AlTiN
End Mill Material Solid Carbide
Number Of Flutes 4
Single Or Double End Single
Overall Length (Inch) 5
Length of Cut (Inch) 5/8
Cutting Direction Right Hand
Coolant Through No
Mill Diameter (Decimal Inch) 0.5000
Flute Direction Right Hand
Helix Angle 38
Overall Length (Decimal Inch) 5.0000
Chipbreaker No
Chamfer Angle 45.000
Length Of Cut (Decimal Inch - 4 Decimals) 0.6250
Length Type Regular
Flute Type Helical
Extended Reach No
Shank Type Cylindrical
Centercutting Yes
Variable Index No
Variable Helix No
Material Removal Type Roughing & Finishing
Shank Diameter (Decimal Inch) 0.5000
Shank Diameter (Inch) 1/2
Neck Diameter (Decimal Inch) 0.0000
Reach Length (Decimal Inch) 0.6250
Minimum Helix Angle 38
Primary Workpiece Material Hard Material; High Temperature Alloy; Steel
Primary Workpiece Material Code P; S; H
Secondary Workpiece Material Stainless Steel; Cast Iron
Secondary Workpiece Material Code K; M
Material Grade WS15PE
Series 4VPT
Coating Classification PVD
Chamfer Length (Decimal Inch) 0.0200
Helix Style Medium
$ 156.12
