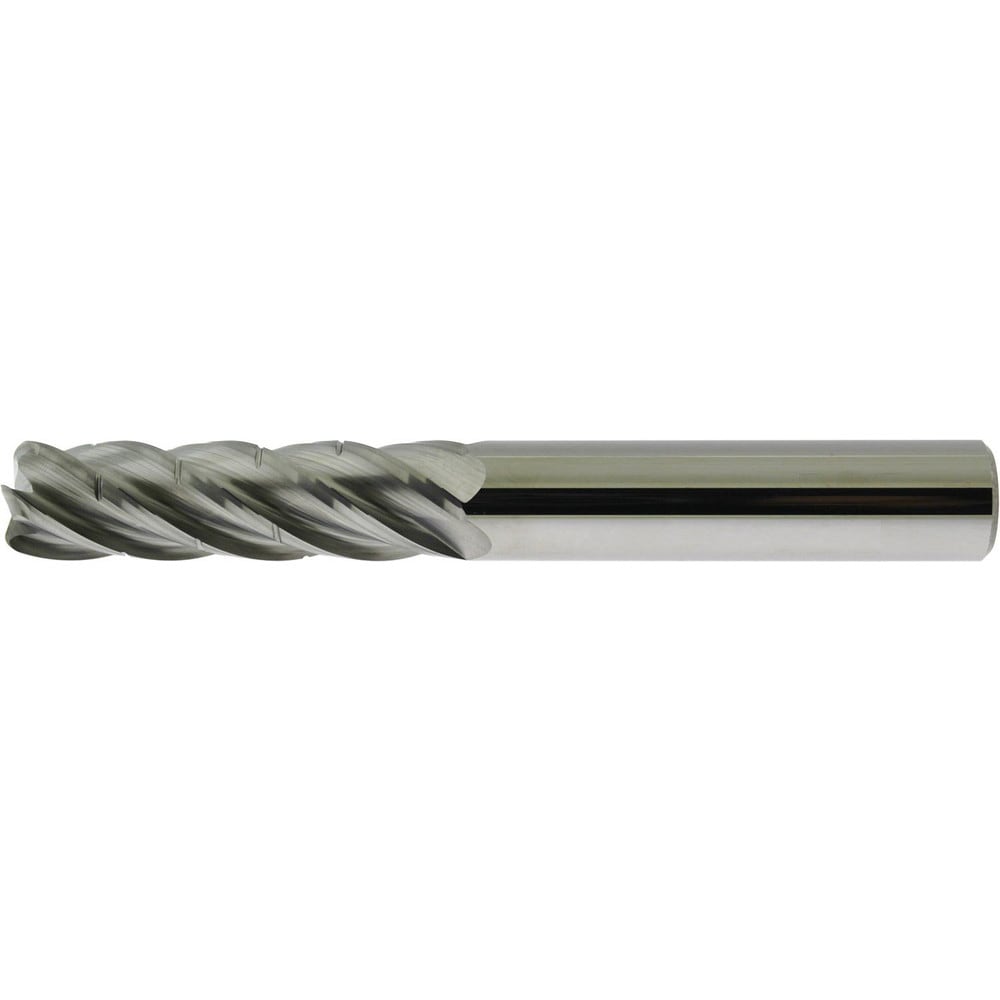

Brand: Accupro / Part #: 14735163
Item #: 13486709
Brand: Accupro
Model #: 14735163
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Coating/Finish | Bright/Uncoated |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Single Or Double End | Single |
| Overall Length (Inch) | 3-1/2 |
| Length of Cut (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Flute Direction | Right Hand |
| Helix Angle | 36 |
| Overall Length (Decimal Inch) | 3.5000 |
| Chipbreaker | Yes |
| End Type | Single |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.5000 |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight |
| Centercutting | No |
| Variable Index | Yes |
| Variable Helix | No |
| Minimum Helix Angle | 36 |
| Maximum Helix Angle | 36 |
| Mill Diameter Tolerance | +0.000000 to -0.002000 in |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
| Material Grade | Micrograin |
| Series | AL-5 |
| Material Application | Aluminum |
