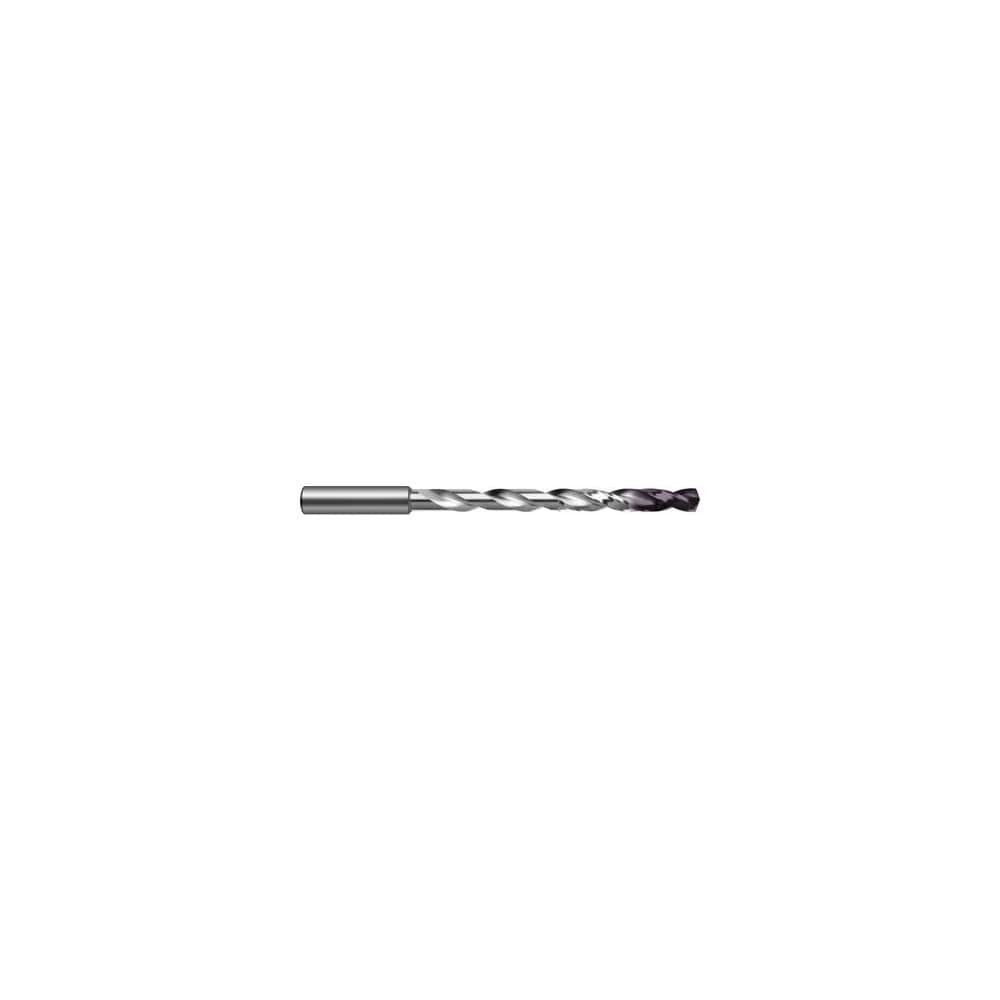

Brand: Guhring / Part #: 9064990054100

Brand: Guhring / Part #: 9064990054100


Item #: 74955832
Brand: Guhring
Model #: 9064990054100

Product Specifications

Drill Bit Size (Wire) #3
Drill Bit Size (mm) 5.41
Overall Length (mm) 123.0000
Flute Length (mm) 83.00
Tool Material Solid Carbide
Coating/Finish Nano-FIREX
Drill Point Angle 140
Shank Type Straight
Coolant Through Yes
Flute Type Helical
Series 6499
Point Type Cone Relief
Cutting Direction Right Hand
Tool Application Deep Hole Drilling
Spiral Type Regular Spiral
Drill Bit Diameter Tolerance h7
Number Of Flutes 2
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Stainless Steel; Cast Iron; Titanium Alloy; Hardened Steel
Secondary Workpiece Material Code S; H; K; M
Drill Bit Size (Decimal Inch) 0.2130
Shank Diameter (mm) 6.0000
Shank Length (mm) 36.000
Flute By Diameter Ratio 12xD
Maximum Drilling Depth (mm) 74.89
