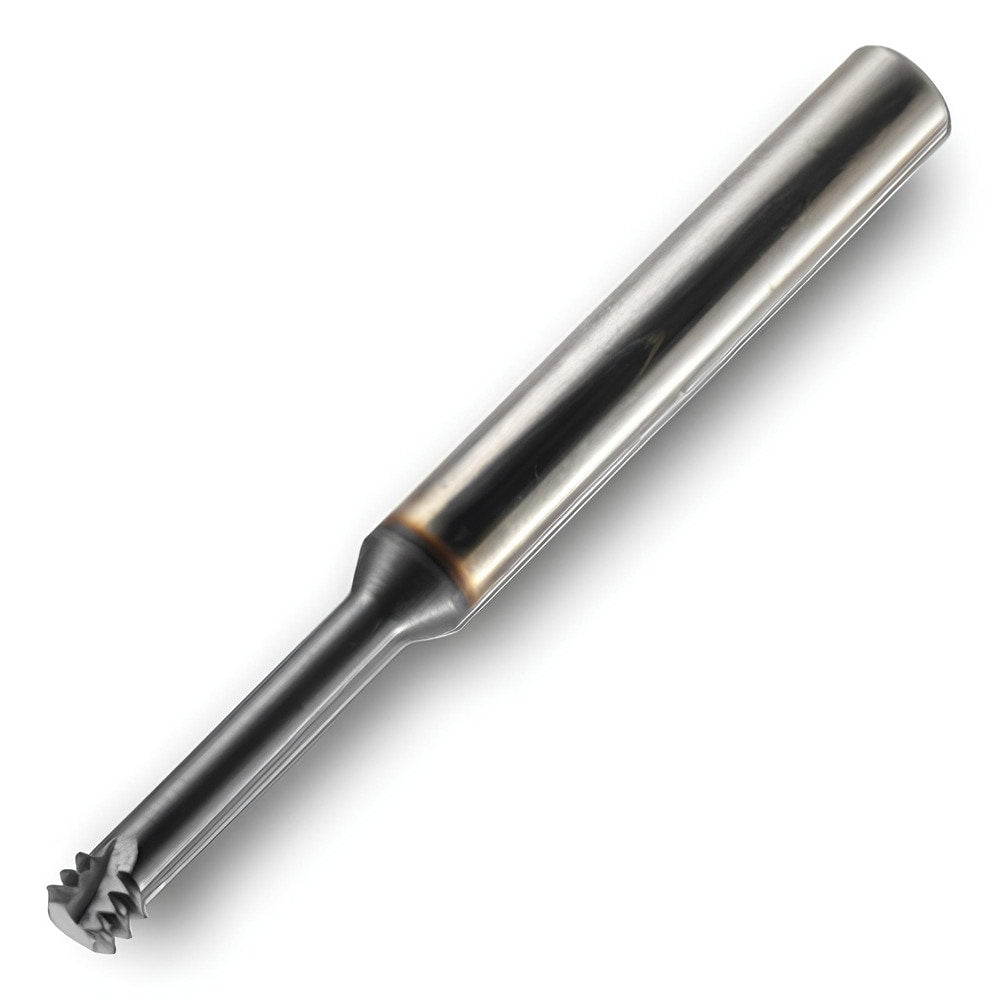

Brand: Ingersoll Cutting Tools / Part #: 5605831
Item #: 51799377
Brand: Ingersoll Cutting Tools
Model #: 5605831
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 9/16 |
| Thread Depth | 1.2400 |
| Thread Depth (Decimal Inch) | 1.2400 |
| Thread Type | UN |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.4130 |
| Minimum Nominal Diameter (Decimal Inch) | 0.5625 |
| Shank Length (Decimal Inch) | 1.7600 |
| Overall Length (Decimal Inch) | 3.0000 |
| Thread Standard | UN |
| Thread Mill Type | Long Reach |
| Flute Direction | Right Hand |
| Material Grade | IN2005 |
| Series | MTECS-UN |
| Number Of Flutes | 3 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2400 |
| Thread Length (Decimal Inch) | 1.2400 |
| Teeth Per Inch | 12 |
