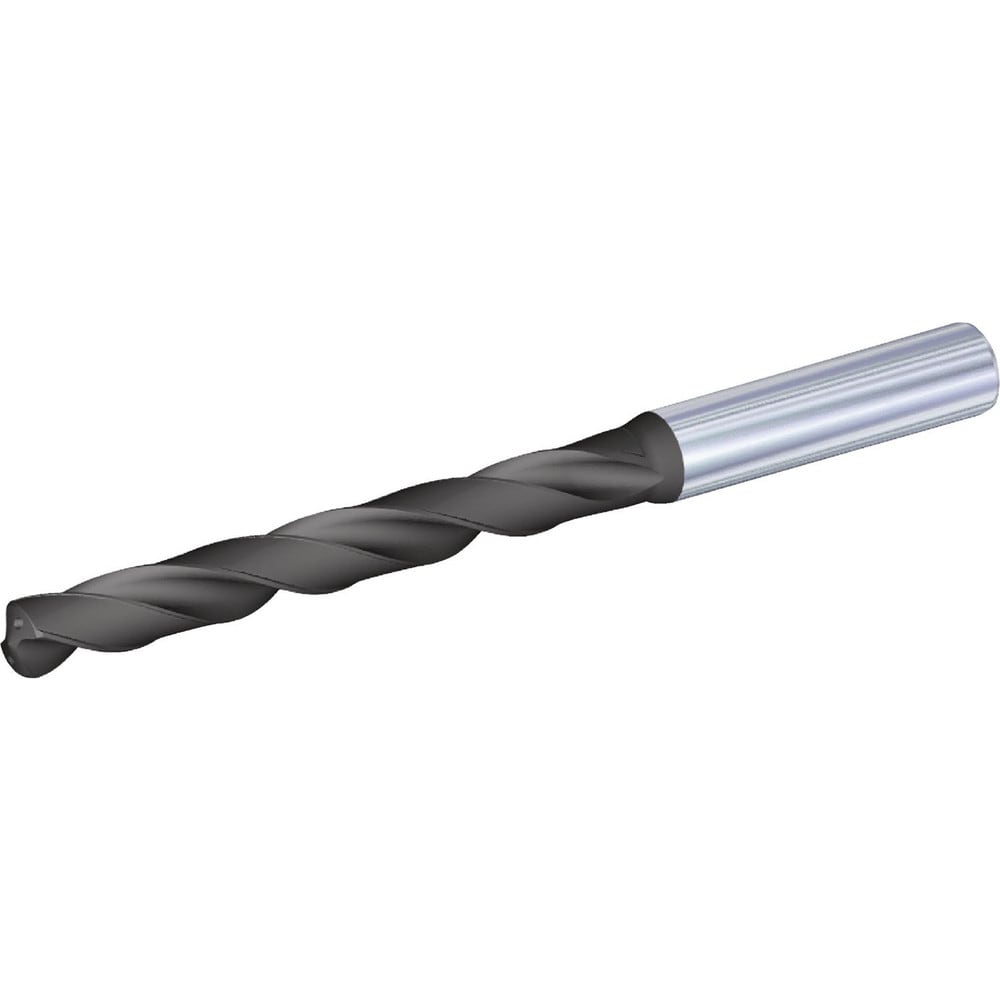

Brand: Widia / Part #: 4156997

Brand: Widia / Part #: 4156997


Item #: 03506318
Brand: Widia
Model #: 4156997

Product Specifications

Drill Bit Size (Wire) #30
Tool Material Carbide
Coating/Finish AlCrN
Drill Point Angle 140
Shank Type Cylindrical
Coolant Through Yes
Flute Type Spiral
Series TDS413A
Point Type Four Facet
Cutting Direction Right Hand
Tool Application Deep Hole Drilling
Spiral Type Regular
Drill Bit Diameter Tolerance 0.000200 to 0.000600 in
Number Of Flutes 2
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Drill Bit Grade WK15PD
Drill Bit Size (Decimal Inch) 0.1285
Drill Point Length (Decimal Inch) 0.0208
Overall Length (Decimal Inch) 3.0709
Shank Diameter (Decimal Inch) 0.2362
Shank Length (Decimal Inch) 1.4173
Flute Length (Decimal Inch) 1.5748
Flute By Diameter Ratio 10xD
Maximum Drilling Depth (Decimal Inch) 1.2992
$ 156.51
