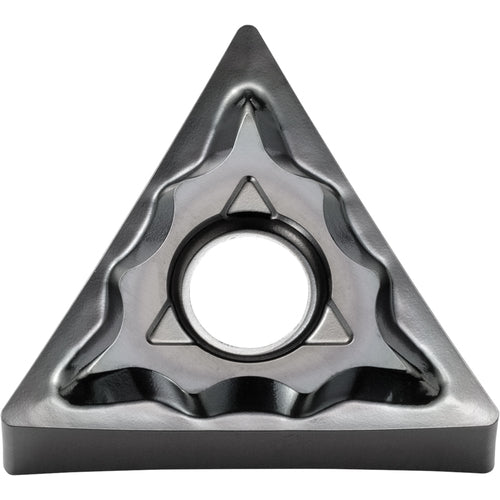

TNMG 331 AH KW10, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, WC/Co, Triangle, Turning Indexable Insert
Item #: KY908803114
Brand: Kyocera Precision Tools
Model #: TWE04428
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Coating | WC/Co |
| Application | External Turning | Facing | Copying | Chamfering | Boring |
| Grade | KW10 |
| Insert Style | TNMG |
| Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 331 |
| Number of Cutting Edges | 6 |
| Insert Thickness (S) | 3/16″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | AH |
| Cutting Edge Material | Carbide |
| Shape | Triangle |
