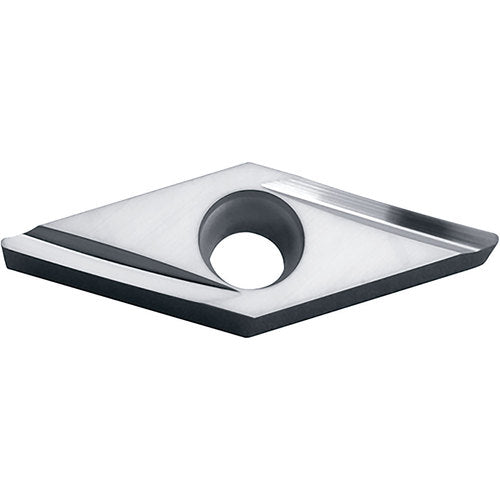

VBGT 3305 Y KW10, 0.0079″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, WC/Co, Diamond, Turning Indexable Insert
Item #: KY908805910
Brand: Kyocera Precision Tools
Model #: TWE00576
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Coating | WC/Co |
| Application | External Turning | Copying | Facing | Undercutting | Profiling | Internal Facing | Back Boring |
| Grade | KW10 |
| Insert Style | VBGT |
| Fixing Hole Diameter (D1) | 0.1732″ |
| Corner Radius (RE) | 0.0079″ |
| Clearance Angle Major (AN) | 5 Degrees |
| Insert Size | 3305 |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3/16″ |
| Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | Y |
| Cutting Edge Material | Carbide |
| Shape | Diamond |
