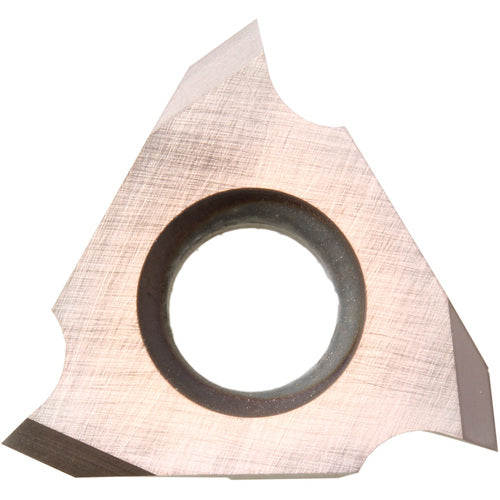

TTX 32R55015 PR930 INSERT
Item #: KY908807424
Brand: Kyocera Precision Tools
Model #: TKT64583
| Product Specifications | |
|---|---|
| Thread Standard | G (PF): Parallel Pipe | R, Rc (PT), (BSPT): Tapered Pipe | W: Whitworth |
| Applicable Material | Steel | Stainless Steel |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Insert Style | TTX |
| Threads per Inch (TPI) | G,R: 19-11 | W: 20-11 |
| Mounting Style | Screw |
| Corner Radius (RE) | 0/1″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/8″ |
| Angle | 55 Degrees |
| Grade | PR930 |
| Cutting Item Count (CICT) | 3 |
| Coating | TiCN |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Hole Diameter | 0.173″ |
| Cutting Position | External |
| Insert Seat Size Code (SSC) | 32 |
| Application | External Threading |
