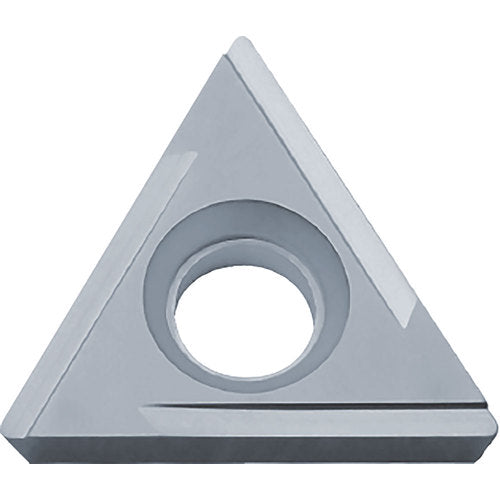

TPGH 322 Hard Steel KW10, 1/32″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, WC/Co, Triangle, Turning Indexable Insert
Item #: KY908815375
Brand: Kyocera Precision Tools
Model #: TWE03758
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Coating | WC/Co |
| Application | External Turning | Boring | Internal Facing | Copying | Back Boring |
| Grade | KW10 |
| Insert Style | TPGH |
| Fixing Hole Diameter (D1) | 0.1772″ |
| Corner Radius (RE) | 1/32″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 322 |
| Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | Hard Steel |
| Cutting Edge Material | Carbide |
| Shape | Triangle |
