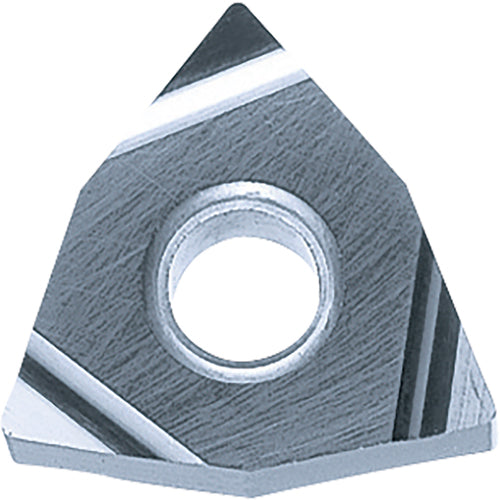

WNGG 3305 S KW10, 0.0079″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, WC/Co, Trigon, Turning Indexable Insert
Item #: KY908816280
Brand: Kyocera Precision Tools
Model #: TWE03652
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Coating | WC/Co |
| Application | External Turning | Facing | Boring | Internal Facing |
| Grade | KW10 |
| Insert Style | WNGG |
| Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 0.0079″ |
| Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 3305 |
| Number of Cutting Edges | 6 |
| Insert Thickness (S) | 3/16″ |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | S |
| Cutting Edge Material | Carbide |
| Shape | Trigon |
