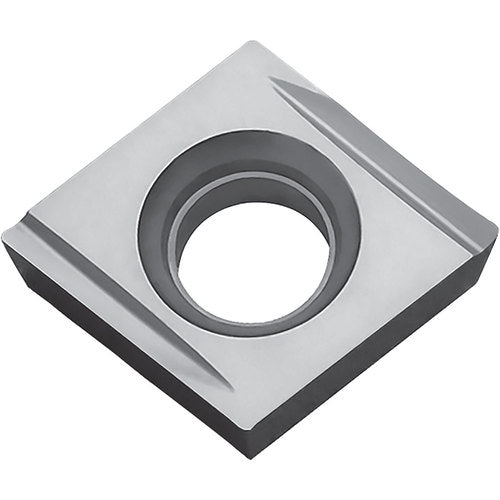

CPMH 25151 Y KW10, 1/64″ Corner Radius, 3/32″ Thick, 5/16″ Inscribed Circle, WC/Co, Diamond, Turning Indexable Insert
Item #: KY908817323
Brand: Kyocera Precision Tools
Model #: TWE04650
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Coating | WC/Co |
| Application | Boring | Internal Facing |
| Grade | KW10 |
| Insert Style | CPMH |
| Fixing Hole Diameter (D1) | 0.1378″ |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 25151 |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3/32″ |
| Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 5/16″ |
| Chip Breaker Type | Y |
| Cutting Edge Material | Carbide |
| Shape | Diamond |
