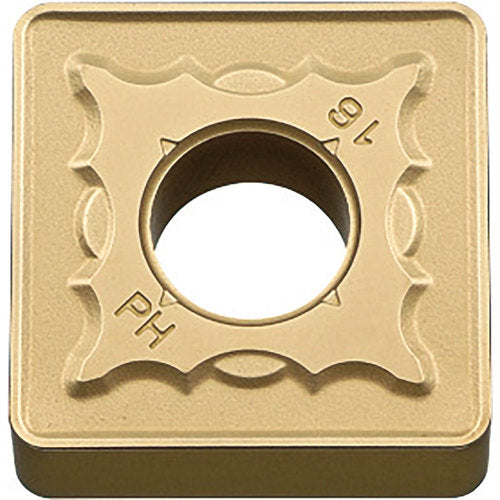

SNMG 643 PH CA5525, 3/64″ Corner Radius, 1/4″ Thick, 3/4″ Inscribed Circle, TiCnulll2O3/TiN, Square, Turning Indexable Insert
Item #: KY908825495
Brand: Kyocera Precision Tools
Model #: TJR05306
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Grade | CA5525 |
| Application | External Turning | Facing | Chamfering | Boring |
| Fixing Hole Diameter (D1) | 0.3126″ |
| Insert Style | SNMG |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 3/64″ |
| Number of Cutting Edges | 8 |
| Insert Size | 643 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ |
| Chip Breaker Type | PH |
| Inscribed Circle Diameter (IC) | 3/4″ |
| Shape | Square |
| Cutting Edge Material | Carbide |
| Series/List # | CA55-Series |
| Coating | TiCnulll2O3/TiN |
