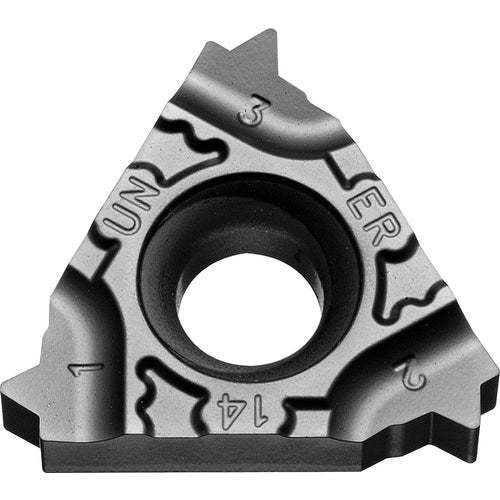

16 ER18UNTF PR1115 INSERT ALT MFG #16ER18UNTFPR1115
Item #: KY908826023
Brand: Kyocera Precision Tools
Model #: TJY18884
| Product Specifications | |
|---|---|
| Thread Standard | Unified (UN) |
| Applicable Material | Steel |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Insert Style | 16 |
| Threads per Inch (TPI) | 18 |
| Mounting Style | Clamp or Screw |
| Corner Radius (RE) | 0.0071″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.145″ |
| Chip Breaker Type | TF |
| Grade | PR1115 |
| Angle | 60 Degrees |
| Coating | TiAlN |
| Cutting Item Count (CICT) | 3 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Cutting Position | External |
| Hole Diameter | 0.157″ |
| Application | External Threading |
| Insert Seat Size Code (SSC) | 18 |
