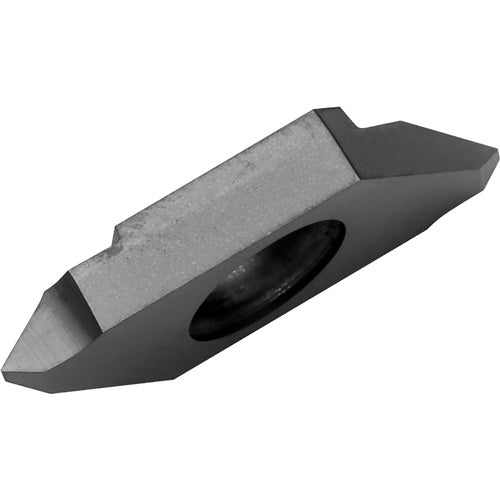

TKFT 12RN6001 KW10 INSERT
Item #: KY908827962
Brand: Kyocera Precision Tools
Model #: TWE16580
| Product Specifications | |
|---|---|
| Thread Standard | Metric (M) | Unified (UN) |
| Cutting Position | External |
| Thread Pitch (TP) | 1 mm - 1.5 mm |
| Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 24-18 |
| Application | External Threading |
| Corner Radius (RE) | 0.004″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Insert Thickness (S) | 0.118″ |
| Number of Teeth | 2 |
| Cutting Width (CW) | 5/51″ |
| Profile Included Angle (PNA) | 60 Degrees |
| Insert Size | 12 |
| Series/List # | KTKF-Series |
| Grade | KW10 |
| Mounting Style | Screw |
| Coating | WC/Co |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Insert Style | TKFT |
