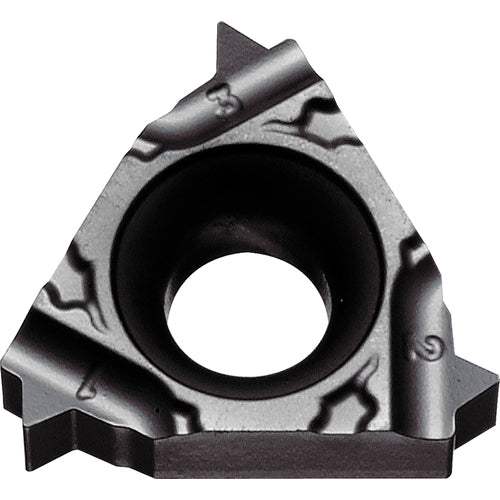

11 IR150ISOTFPR15 PR1115 ALT MFG #11IR150ISOTFPR1115
Item #: KY908829760
Brand: Kyocera Precision Tools
Model #: TJY18430
| Product Specifications | |
|---|---|
| Thread Standard | Metric (M) |
| Applicable Material | Steel |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Insert Style | 11 |
| Thread Pitch (TP) | 1.5 mm |
| Mounting Style | Clamp or Screw |
| Corner Radius (RE) | 0.11 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.18 mm |
| Chip Breaker Type | TF |
| Grade | PR1115 |
| Angle | 60 Degrees |
| Coating | TiAlN |
| Cutting Item Count (CICT) | 3 |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
| Cutting Position | Internal |
| Hole Diameter | 3 mm |
| Application | Internal Threading |
| Insert Seat Size Code (SSC) | 150 |
