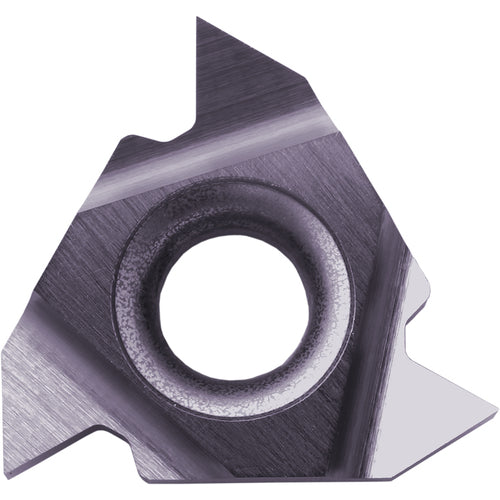

16 IRA55 PR1115 INSERT ALT MFG #16IRA55PR1115
Item #: KY908829852
Brand: Kyocera Precision Tools
Model #: TJY18214
| Product Specifications | |
|---|---|
| Thread Standard | Parallel Pipe [G(PF)] | Tapered Pipe [Rc | (PT) | (BSPT)] | Whitworth (W) |
| Applicable Material | Steel |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Insert Style | 16 |
| Threads per Inch (TPI) | 40-16 |
| Mounting Style | Clamp or Screw |
| Corner Radius (RE) | 0.002″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.145″ |
| Angle | 55 Degrees |
| Grade | PR1115 |
| Cutting Item Count (CICT) | 3 |
| Coating | TiAlN |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Hole Diameter | 0.157″ |
| Cutting Position | Internal |
| Insert Seat Size Code (SSC) | A55 |
| Application | Internal Threading |
