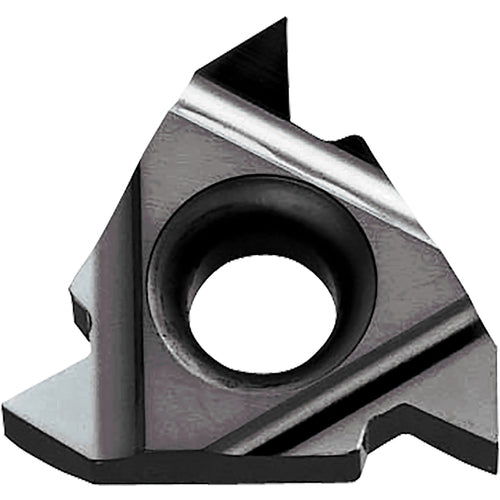

22 ERN60 PR1115 INSERT ALT MFG #22ERN60PR1115
Item #: KY908829891
Brand: Kyocera Precision Tools
Model #: TJY18229
| Product Specifications | |
|---|---|
| Thread Standard | Metric (M) | Unified (UN) |
| Application | External Threading |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Applicable Material | Steel |
| Thread Pitch (TP) | 3.5 mm – 5 mm |
| Insert Style | 22 |
| Threads per Inch (TPI) | 7-5 |
| Mounting Style | Clamp |
| Corner Radius (RE) | 0.019″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.193″ |
| Angle | 60 Degrees |
| Grade | PR1115 |
| Cutting Item Count (CICT) | 3 |
| Coating | TiAlN |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Hole Diameter | 0.191″ |
| Cutting Position | External |
| Insert Seat Size Code (SSC) | N60 |
