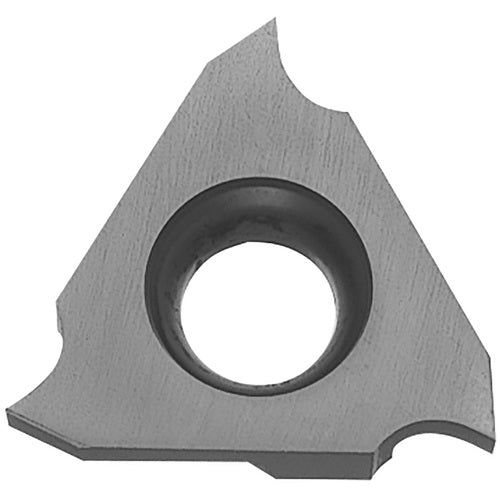

TGF 32R150010 KW10 INSERT
Item #: KY908830625
Brand: Kyocera Precision Tools
Model #: TWE15528
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 1.5 mm |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Corner Radius (RE) | 0.1 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 2 mm |
| Insert Style | TGF |
| Insert Thickness (S) | 3.18 mm |
| Insert Seat Size Code (SSC) | 32 |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Number of Teeth | 3 |
| Fixing Hole Diameter (D1) | 4.5 mm |
| Mounting Style | Clamp |
| Coating | WC/Co |
| Series/List # | KTG |
| Grade | KW10 |
| Coating Process | Uncoated |
| Shape | General (Square), Corner is R Shape |
| Measurement Type | Metric |
| Cutting Edge Material | Carbide |
