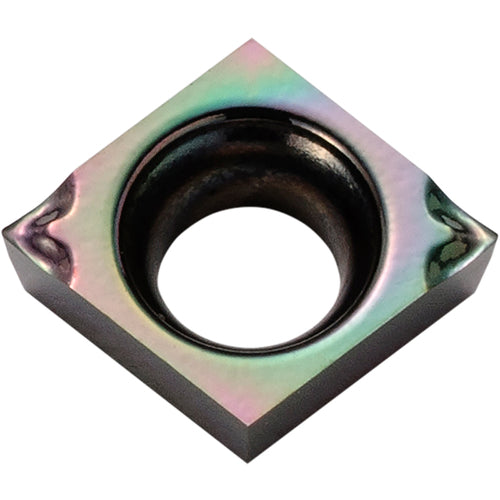

CCGT 141105 MP-CF PDL025, 0.0079″ Corner Radius, 0.0709″ Thick, 0.1693″ Inscribed Circle, C, Diamond, Turning Indexable Insert
Item #: KY908845220
Brand: Kyocera Precision Tools
Model #: TLE01386
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Coating | C |
| Application | External Turning | Facing | Boring | Internal Facing | Sub-Spindle |
| Grade | PDL025 |
| Insert Style | CCGT |
| Fixing Hole Diameter (D1) | 0.0906″ |
| Corner Radius (RE) | 0.0079″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 141105 |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.0709″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.1693″ |
| Chip Breaker Type | MP-CF |
| Cutting Edge Material | Carbide |
| Shape | Diamond |
