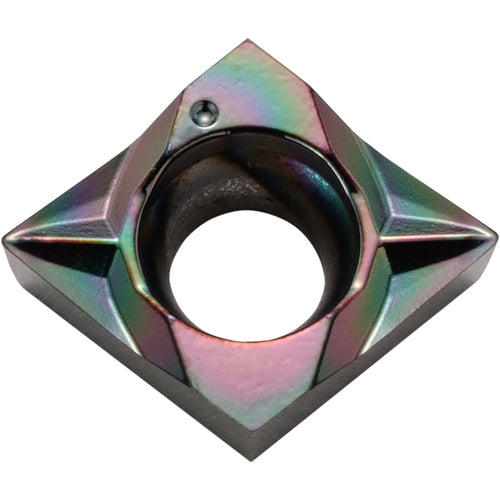

CCGT 3251 MFP-SK PDL025, 1/64″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, C, Diamond, Turning Indexable Insert
Item #: KY908845223
Brand: Kyocera Precision Tools
Model #: TLE01432
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Coating | C |
| Application | External Turning | Facing | Boring | Internal Facing | Sub-Spindle |
| Grade | PDL025 |
| Insert Style | CCGT |
| Fixing Hole Diameter (D1) | 0.1732″ |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 3251 |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5/32″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | MFP-SK |
| Cutting Edge Material | Carbide |
| Shape | Diamond |
