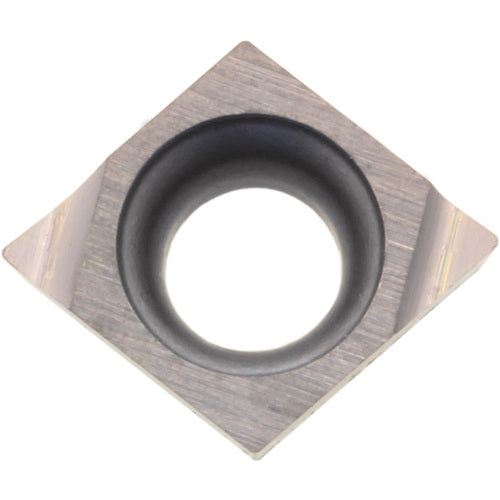

CCET 1109013 M-F PR1535, 0.002″ Corner Radius, 0.0551″ Thick, 0.1378″ Inscribed Circle, MEGACOAT NANO, Diamond, Turning Indexable Insert
Item #: KY908846054
Brand: Kyocera Precision Tools
Model #: TLC01002
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Grade | PR1535 |
| Application | External Turning | Facing | Boring | Internal Facing | Sub-Spindle |
| Fixing Hole Diameter (D1) | 0.0748″ |
| Insert Style | CCET |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.002″ |
| Number of Cutting Edges | 2 |
| Insert Size | 1109013 |
| Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 0.0551″ |
| Chip Breaker Type | M-F |
| Inscribed Circle Diameter (IC) | 0.1378″ |
| Shape | Diamond |
| Cutting Edge Material | Carbide |
| Series/List # | PR15-Series |
| Coating | MEGACOAT NANO |
