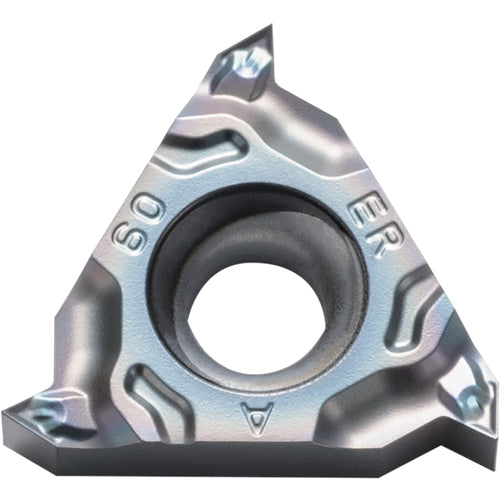

16 ERAG60TQ PR1535 INSERT ALT MFG #16ERAG60TQPR1535
Item #: KY908849038
Brand: Kyocera Precision Tools
Model #: TLC19724
| Product Specifications | |
|---|---|
| Thread Standard | Metric (M) | Unified (UN) |
| Applicable Material | Super-Alloys / Titanium | Stainless Steel |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Insert Style | 16 |
| Thread Pitch (TP) | 0.5 mm – 3 mm |
| Mounting Style | Clamp |
| Threads per Inch (TPI) | 48-8 |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0024″ |
| Chip Breaker Type | TQ |
| Insert Thickness (S) | 0.145″ |
| Angle | 60 Degrees |
| Grade | PR1535 |
| Cutting Item Count (CICT) | 3 |
| Coating | MEGACOAT NANO |
| Series/List # | PR15-Series |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Cutting Position | External |
| Hole Diameter | 0.157″ |
| Application | External Threading |
| Insert Seat Size Code (SSC) | AG60 |
