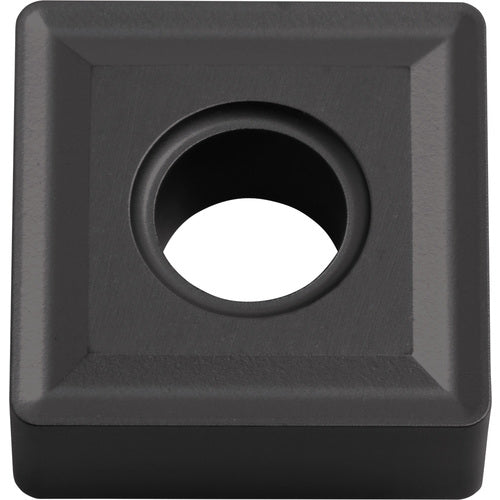

SNMG 322 CA4515, 1/32″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, TiCl2O3, 90 Degree Square, Turning Indexable Insert
Item #: KY90TJH05071
Brand: Kyocera Precision Tools
Model #: TJH05071
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Tool Type | Turning Insert |
| Application | Boring | Chamfering | External Turning | Facing |
| Fixing Hole Diameter (D1) | 0.15″ |
| Insert Style | SNMG |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/32″ |
| Number of Cutting Edges | 8 |
| Insert Size | 322 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/8″ |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees |
| Shape | Square |
| Cutting Edge Material | Carbide |
| Series/List # | ISOI |
| Coating | TiCl2O3 |
| Model No | 8831388 |
| Grade | CA4515 |
