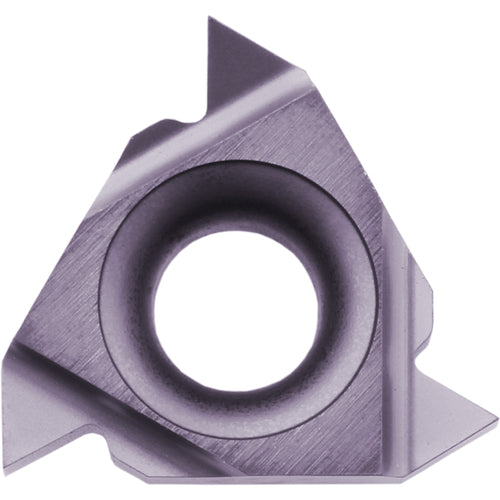

06 IR60005 PR1115 Grade PVD Carbide, Indexable Threading Insert
Item #: KY90TJY18055
Brand: Kyocera Precision Tools
Model #: TJY18055
| Product Specifications | |
|---|---|
| Thread Standard | Metric | UN |
| Application | Internal Threading |
| Inscribed Circle Diameter (IC) | 5/32″ |
| Applicable Material | Stainless Steel | Super-Alloys / Titanium |
| Thread Pitch (TP) | 0.75 mm - 1.25 mm |
| Insert Style | 06IR |
| Threads per Inch (TPI) | 28-20 |
| Mounting Style | Clamp | Screw |
| Corner Radius (RE) | 0.002″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.075″ |
| Cutting Item Count (CICT) | 3 |
| Grade | PR1115 |
| Series/List # | LDT |
| Coating | TiAlN |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Hole Diameter | 0.0906″ |
| Cutting Position | Internal |
| Profile Included Angle (PNA) | 60 Degrees |
