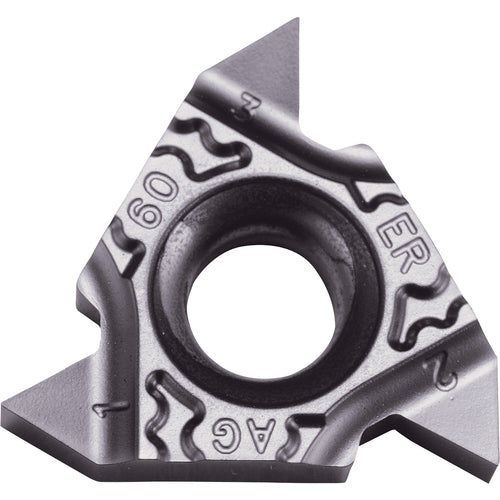

16 ERAG60TF PR1215 Grade PVD Carbide, Indexable Threading Insert
Item #: KY90TKH18198
Brand: Kyocera Precision Tools
Model #: TKH18198
| Product Specifications | |
|---|---|
| Thread Standard | Metric | UN |
| Applicable Material | Super-Alloys / Titanium |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Insert Style | 16ER |
| Thread Pitch (TP) | 0.5 mm - 3 mm |
| Mounting Style | Clamp | Screw |
| Threads per Inch (TPI) | 48-8 |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.002″ |
| Chip Breaker Type | TF |
| Insert Thickness (S) | 0.145″ |
| Cutting Item Count (CICT) | 3 |
| Grade | PR1215 |
| Series/List # | LDT |
| Coating | MEGACOAT |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Hole Diameter | 0.1575″ |
| Cutting Position | External |
| Profile Included Angle (PNA) | 60 Degrees |
| Application | External Threading |
