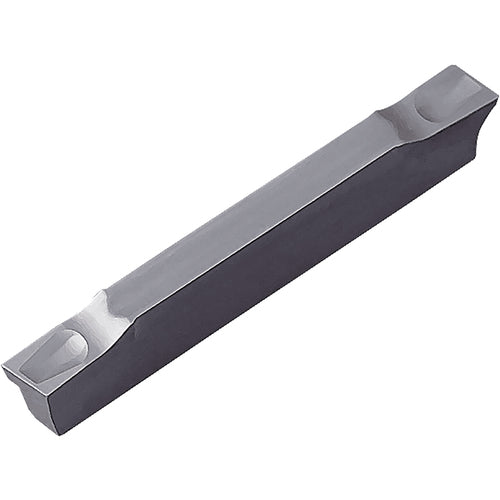

GMM 1520MT PR930 Grade PVD Carbide, Indexable Grooving Insert
Item #: KY90TKT12710
Brand: Kyocera Precision Tools
Model #: TKT12710
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 1.5 mm |
| Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 11.5 mm |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 4.3 mm |
| Chip Breaker Type | MT |
| Insert Length (INSL) | 20 mm |
| Insert Style | GMM |
| Coating | TiCN |
| Number of Teeth | 2 |
| Grade | PR930 |
| Mounting Style | Clamp |
| Cutting Edge Material | Carbide |
| Series/List # | KGM |
| Application | Cut-Off | External Deep Grooving | External Grooving |
| Coating Process | PVD |
| Applicable Material | Steel | Stainless Steel |
| Measurement Type | Metric |
