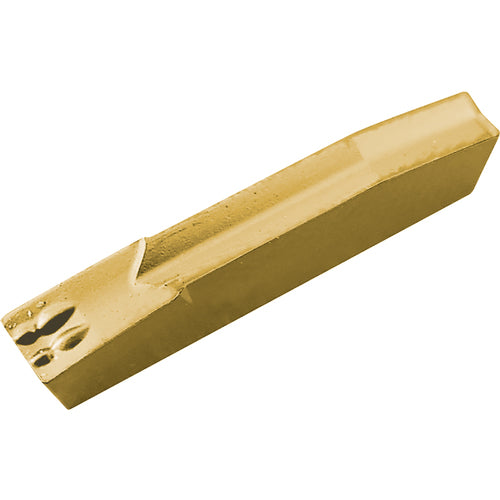

GM R228D CR9025 Grade CVD Carbide, Indexable Grooving Insert
Item #: KY90TKW12501
Brand: Kyocera Precision Tools
Model #: TKW12501
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 2.2 mm |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.17 mm |
| Number of Cutting Edges | 1 |
| Cutting Depth Maximum (CDX) | 17 mm |
| Chip Breaker Type | D |
| Insert Thickness (S) | 4.3 mm |
| Insert Style | GM |
| Insert Length (INSL) | 20 mm |
| Number of Teeth | 1 |
| Coating | TiCN/TiN |
| Mounting Style | Clamp |
| Grade | CR9025 |
| Series/List # | KGM |
| Cutting Edge Material | Carbide |
| Coating Process | CVD |
| Application | Cut-Off | External Deep Grooving | External Grooving |
| Measurement Type | Metric |
| Applicable Material | Steel |
