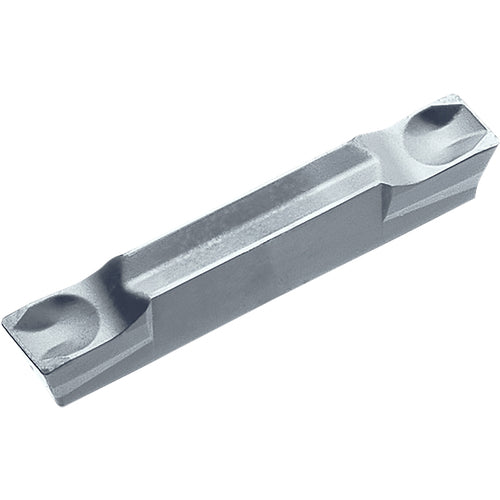

GMM 2020RTK8D KW10 Grade Uncoated Carbide, Indexable Grooving Insert
Item #: KY90TWE13281
Brand: Kyocera Precision Tools
Model #: TWE13281
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 2 mm |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.2 mm |
| Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 17 mm |
| Chip Breaker Type | TK |
| Insert Thickness (S) | 4.3 mm |
| Insert Style | GMM |
| Insert Length (INSL) | 20 mm |
| Number of Teeth | 2 |
| Coating | WC/Co |
| Mounting Style | Clamp |
| Grade | KW10 |
| Series/List # | KGM |
| Cutting Edge Material | Carbide |
| Coating Process | Uncoated |
| Application | Cut-Off | External Deep Grooving | External Grooving |
| Measurement Type | Metric |
| Applicable Material | Aluminum / Non-Ferrous Materials |
