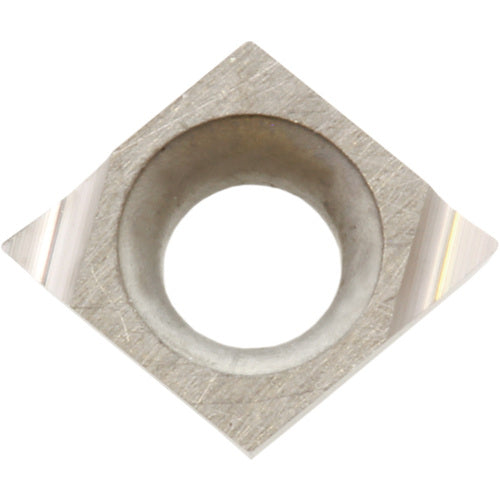

CCGT 141102 F TN60, 0.0039″ Corner Radius, 0.0709″ Thick, 0.1693″ Inscribed Circle, TiCN/NbC, Diamond, Turning Indexable Insert
Item #: KY918807835
Brand: Kyocera Precision Tools
Model #: TSJ00117
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN/NbC |
| Application | External Turning | Facing | Boring | Internal Facing | Sub-Spindle |
| Grade | TN60 |
| Insert Style | CCGT |
| Fixing Hole Diameter (D1) | 0.0906″ |
| Corner Radius (RE) | 0.0039″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 141102 |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.0709″ |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 0.1693″ |
| Chip Breaker Type | F |
| Cutting Edge Material | Cermet |
| Shape | Diamond |
