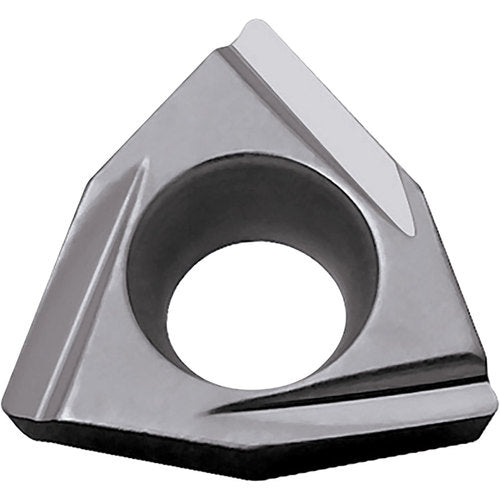

WPGT 2151 Y TN60, 1/64″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, TiCN/NbC, Trigon, Turning Indexable Insert
Item #: KY918808051
Brand: Kyocera Precision Tools
Model #: TSJ03920
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN/NbC |
| Application | Boring |
| Grade | TN60 |
| Insert Style | WPGT |
| Fixing Hole Diameter (D1) | 0.1102″ |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 2151 |
| Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/32″ |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Chip Breaker Type | Y |
| Cutting Edge Material | Cermet |
| Shape | Trigon |
