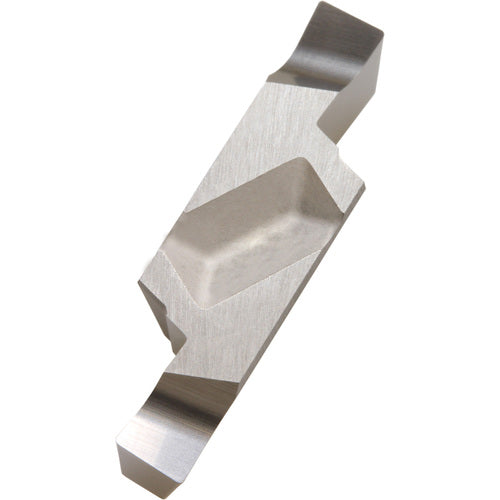

GVF L350B TN90 INSERT
Item #: KY918811411
Brand: Kyocera Precision Tools
Model #: TSO08739
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 3.5 mm |
| Chip Breaker Type | B |
| Corner Radius (RE) | 0.2 mm |
| Overall Length (OAL) | 20 mm |
| Cutting Depth Maximum (CDX) | 4.8 mm |
| Insert Style | GVF |
| Insert Thickness (S) | 5.8 mm |
| Insert Seat Size Code (SSC) | 350 |
| Grade | TN90 |
| Number of Teeth | 2 |
| Cutting Edge Material | Cermet |
| Mounting Style | Clamp |
| Applicable Material | Steel | Stainless Steel |
| Coating Process | Uncoated |
| Cutting Direction (HAND) | Left Hand |
| Measurement Type | Metric |
