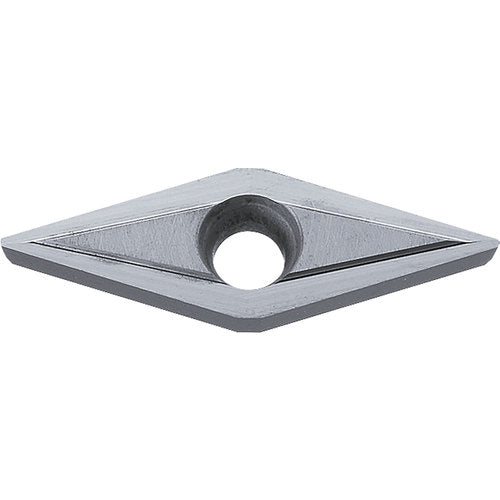

VCGT 2205 FN-Z TN60, 0.0079″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, TiCN/NbC, Diamond, Turning Indexable Insert
Item #: KY918815877
Brand: Kyocera Precision Tools
Model #: TSJ63360
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN/NbC |
| Application | External Turning | Copying | Facing | Undercutting | Profiling | Internal Facing | Back Boring |
| Grade | TN60 |
| Insert Style | VCGT |
| Fixing Hole Diameter (D1) | 0.1102″ |
| Corner Radius (RE) | 0.0079″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 2205 |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 1/8″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Chip Breaker Type | FN-Z |
| Cutting Edge Material | Cermet |
| Shape | Diamond |
