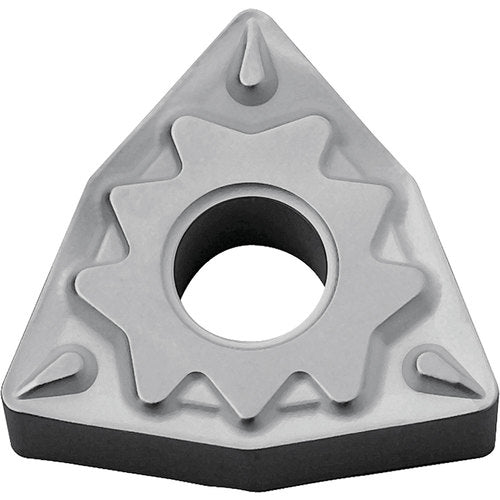

WNMG 3251 HQ TN60, 1/64″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, TiCN/NbC, Trigon, Turning Indexable Insert
Item #: KY918816312
Brand: Kyocera Precision Tools
Model #: TSJ04050
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN/NbC |
| Application | External Turning | Facing | Boring | Internal Facing |
| Grade | TN60 |
| Insert Style | WNMG |
| Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 3251 |
| Number of Cutting Edges | 6 |
| Insert Thickness (S) | 5/32″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | HQ |
| Cutting Edge Material | Cermet |
| Shape | Trigon |
