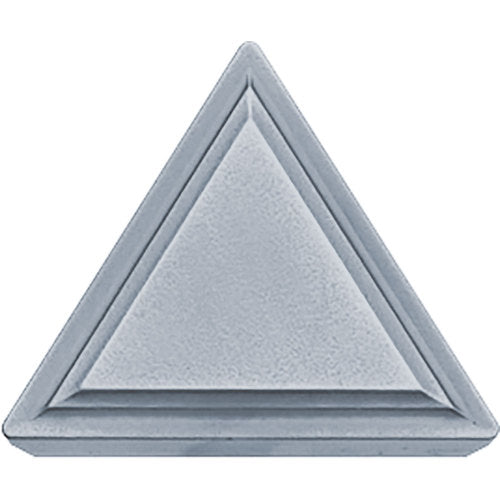

TPMR 321 PV7005 INSERT
Item #: KY918827568
Brand: Kyocera Precision Tools
Model #: TJA07245
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Cutting Edge Material | Cermet |
| Application | External Turning | Boring | Internal Facing | Copying | Back Boring |
| Coating | TiC/TiN (MEGACOAT) |
| Insert Style | TPMR |
| Grade | PV7005 |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 321 |
| Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Shape | Triangle |
