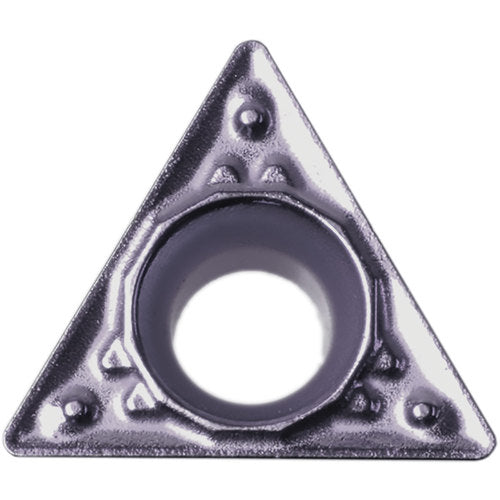

TPMT 18151 HQ PV7010, 1/64″ Corner Radius, 3/32″ Thick, 7/32″ Inscribed Circle, TiCN (MEGACOAT), Triangle, Turning Indexable Insert
Item #: KY918828216
Brand: Kyocera Precision Tools
Model #: TJC07121
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN (MEGACOAT) |
| Application | External Turning | Boring | Internal Facing | Copying | Back Boring |
| Grade | PV7010 |
| Insert Style | TPMT |
| Fixing Hole Diameter (D1) | 0.1102″ |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 18151 |
| Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/32″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 7/32″ |
| Chip Breaker Type | HQ |
| Cutting Edge Material | Cermet |
| Shape | Triangle |
