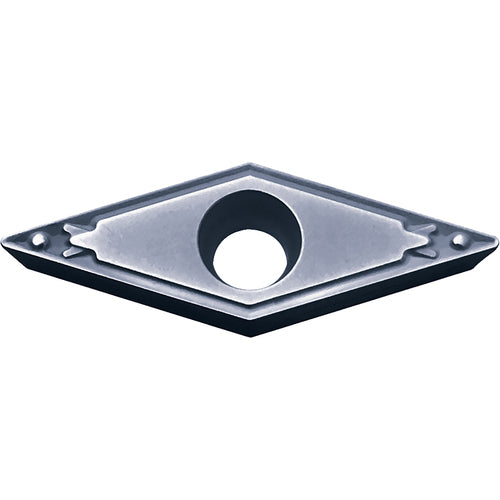

VBMT 332 HQ PV7010, 1/32″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, TiCN (MEGACOAT), Diamond, Turning Indexable Insert
Item #: KY918828240
Brand: Kyocera Precision Tools
Model #: TJC07566
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN (MEGACOAT) |
| Application | External Turning | Copying | Facing | Undercutting | Profiling | Internal Facing | Back Boring |
| Grade | PV7010 |
| Insert Style | VBMT |
| Fixing Hole Diameter (D1) | 0.1732″ |
| Corner Radius (RE) | 1/32″ |
| Clearance Angle Major (AN) | 5 Degrees |
| Insert Size | 332 |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3/16″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | HQ |
| Cutting Edge Material | Cermet |
| Shape | Diamond |
