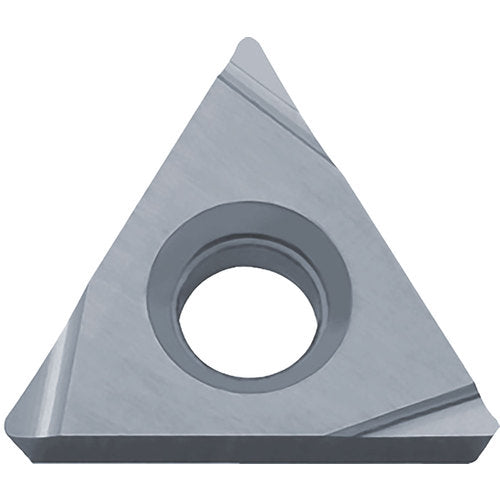

TPGH 2151L TN6010 INSERT
Item #: KY918830223
Brand: Kyocera Precision Tools
Model #: TSC06872
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN |
| Application | External Turning | Boring | Internal Facing | Copying | Back Boring |
| Grade | TN6010 |
| Insert Style | TPGH |
| Fixing Hole Diameter (D1) | 0.1378″ |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 2151 |
| Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/32″ |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Shape | Triangle |
| Cutting Edge Material | Cermet |
