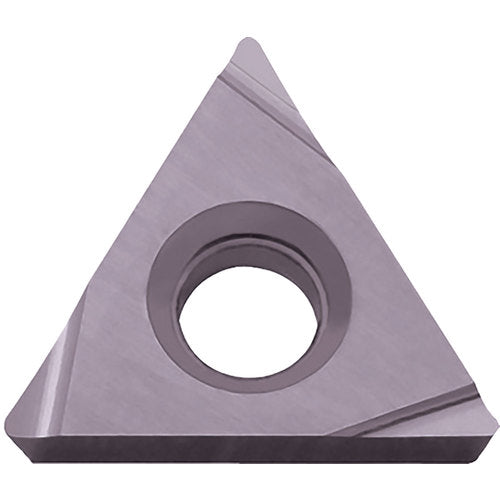

TPGH 15151L PV7010 INSERT
Item #: KY918833106
Brand: Kyocera Precision Tools
Model #: TJC06856
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN (MEGACOAT) |
| Application | External Turning | Boring | Internal Facing | Copying | Back Boring |
| Grade | PV7010 |
| Insert Style | TPGH |
| Fixing Hole Diameter (D1) | 0.0906″ |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 15151 |
| Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/32″ |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 3/16″ |
| Shape | Triangle |
| Cutting Edge Material | Cermet |
