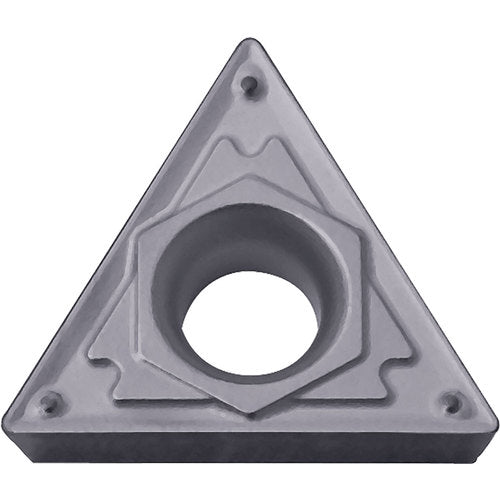

TCMT 21505 HQ PV7025, 0.0079″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, TiCN (MEGACOAT), Triangle, Turning Indexable Insert
Item #: KY918833205
Brand: Kyocera Precision Tools
Model #: TJM05810
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN (MEGACOAT) |
| Application | External Turning |
| Grade | PV7025 |
| Insert Style | TCMT |
| Fixing Hole Diameter (D1) | 0.1102″ |
| Corner Radius (RE) | 0.0079″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 21505 |
| Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/32″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Chip Breaker Type | HQ |
| Cutting Edge Material | Cermet |
| Shape | Triangle |
