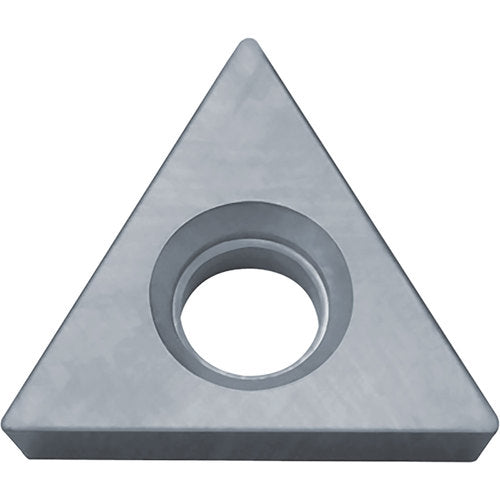

TPGB 2205 PV7025 INSERT
Item #: KY918833227
Brand: Kyocera Precision Tools
Model #: TJM06749
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN (MEGACOAT) |
| Application | External Turning | Boring | Internal Facing | Copying | Back Boring |
| Grade | PV7025 |
| Insert Style | TPGB |
| Fixing Hole Diameter (D1) | 0.1299″ |
| Corner Radius (RE) | 0.0079″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 2205 |
| Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Shape | Triangle |
| Cutting Edge Material | Cermet |
