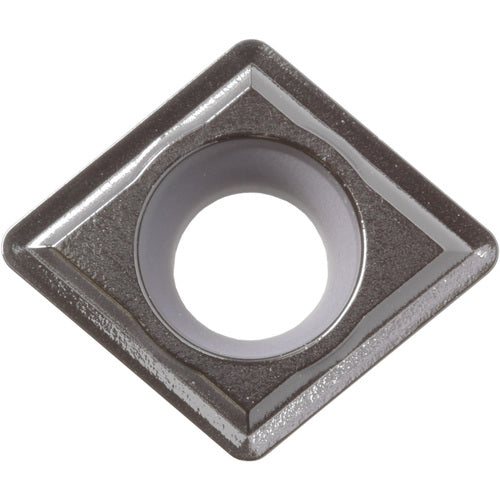

CCMT 3252 PV7005 INSERT
Item #: KY918837325
Brand: Kyocera Precision Tools
Model #: TJA01213
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Coating | TiC/TiN (MEGACOAT) |
| Application | External Turning | Facing | Boring | Internal Facing |
| Grade | PV7005 |
| Insert Style | CCMT |
| Fixing Hole Diameter (D1) | 0.1732″ |
| Corner Radius (RE) | 1/32″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 3252 |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5/32″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Shape | Diamond |
| Cutting Edge Material | Cermet |
