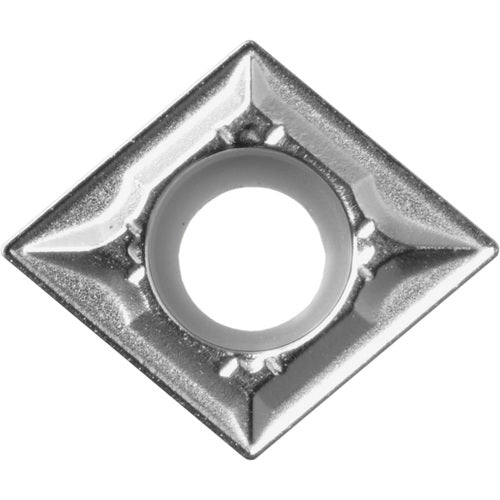

CCMT 432 GK TN620, 1/32″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiCN, Diamond, Turning Indexable Insert
Item #: KY918842725
Brand: Kyocera Precision Tools
Model #: TSR64044
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN |
| Application | External Turning | Facing | Boring | Internal Facing |
| Grade | TN620 |
| Insert Style | CCMT |
| Fixing Hole Diameter (D1) | 0.2165″ |
| Corner Radius (RE) | 1/32″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 432 |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3/16″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Chip Breaker Type | GK |
| Cutting Edge Material | Cermet |
| Shape | Diamond |
