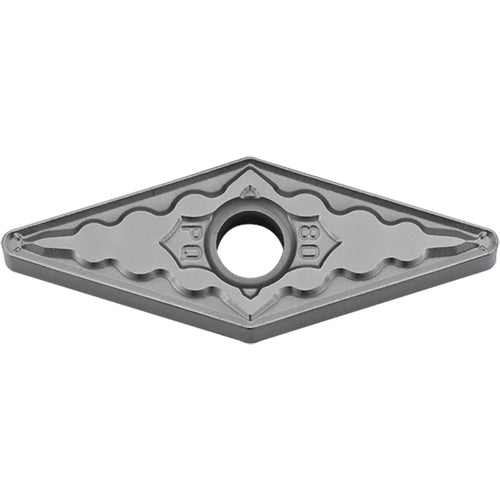

VNMG 333 PQ TN620, 3/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, TiCN, Diamond, Turning Indexable Insert
Item #: KY918842957
Brand: Kyocera Precision Tools
Model #: TSR07874
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN |
| Application | External Turning | Copying | Facing | Undercutting |
| Grade | TN620 |
| Insert Style | VNMG |
| Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 3/64″ |
| Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 333 |
| Number of Cutting Edges | 4 |
| Insert Thickness (S) | 3/16″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | PQ |
| Cutting Edge Material | Cermet |
| Shape | Diamond |
