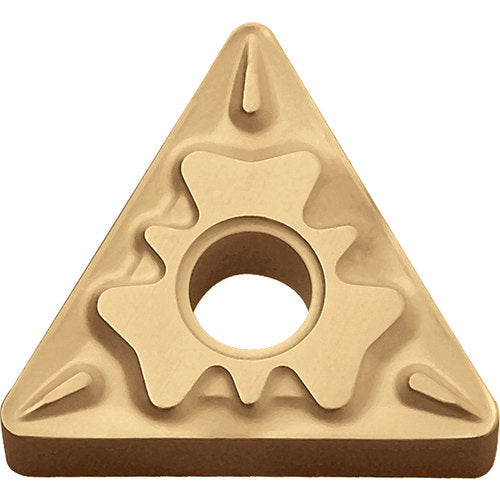

TNMG 332 HQ PV720, 1/32″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, TiCN (MEGACOAT NANO), Triangle, Turning Indexable Insert
Item #: KY918843268
Brand: Kyocera Precision Tools
Model #: TLD06181
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN (MEGACOAT NANO) |
| Application | External Turning | Facing | Copying | Chamfering | Boring |
| Grade | PV720 |
| Insert Style | TNMG |
| Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 1/32″ |
| Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 332 |
| Number of Cutting Edges | 6 |
| Insert Thickness (S) | 3/16″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | HQ |
| Cutting Edge Material | Cermet |
| Shape | Triangle |
