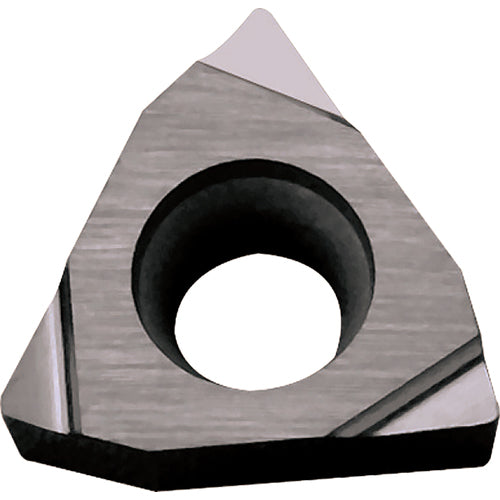

WBET 15151 M-F TN620, 1/64″ Corner Radius, 3/32″ Thick, 3/16″ Inscribed Circle, TiCN, Trigon, Turning Indexable Insert
Item #: KY918843419
Brand: Kyocera Precision Tools
Model #: TSR08025
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN |
| Application | Boring | Internal Facing |
| Grade | TN620 |
| Insert Style | WBET |
| Fixing Hole Diameter (D1) | 0.0906″ |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 5 Degrees |
| Insert Size | 15151 |
| Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/32″ |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 3/16″ |
| Chip Breaker Type | M-F |
| Cutting Edge Material | Cermet |
| Shape | Trigon |
