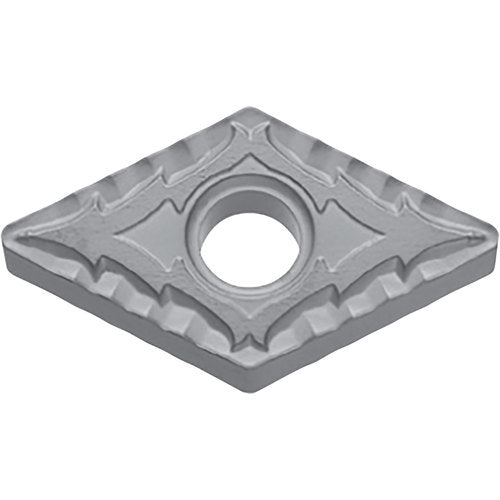

DNMG 441 CQ PV710, 1/64″ Corner Radius, 1/4″ Thick, 1/2″ Inscribed Circle, TiCN (MEGACOAT NANO), Diamond, Turning Indexable Insert
Item #: KY918846857
Brand: Kyocera Precision Tools
Model #: TLF03915
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN (MEGACOAT NANO) |
| Application | External Turning | Copying | Boring |
| Grade | PV710 |
| Insert Style | DNMG |
| Fixing Hole Diameter (D1) | 0.2031″ |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 441 |
| Number of Cutting Edges | 4 |
| Insert Thickness (S) | 1/4″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Chip Breaker Type | CQ |
| Cutting Edge Material | Cermet |
| Shape | Diamond |
