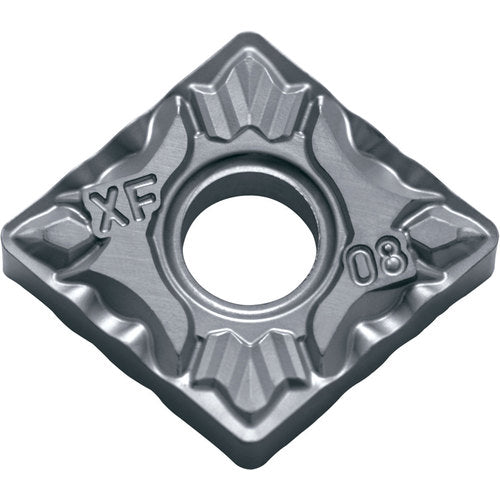

CNMG 431 XF TN610, 1/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiCN, Diamond, Turning Indexable Insert
Item #: KY918846989
Brand: Kyocera Precision Tools
Model #: TSS01832
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN |
| Application | External Turning | Facing | Boring | Internal Facing |
| Grade | TN610 |
| Insert Style | CNMG |
| Fixing Hole Diameter (D1) | 0.2031″ |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 431 |
| Number of Cutting Edges | 4 |
| Insert Thickness (S) | 3/16″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Chip Breaker Type | XF |
| Cutting Edge Material | Cermet |
| Shape | Diamond |
