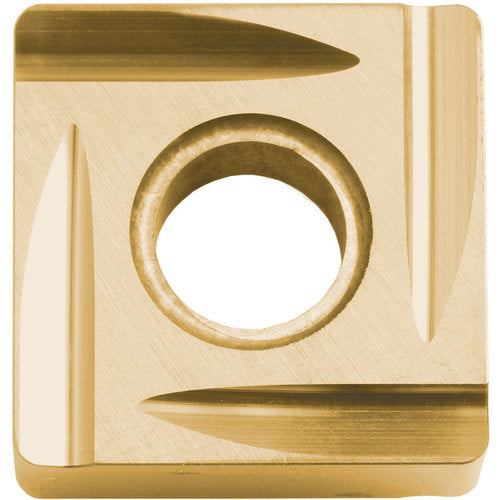

SNGG 321 B PV710, 1/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, TiCN (MEGACOAT NANO), Square, Turning Indexable Insert
Item #: KY918847565
Brand: Kyocera Precision Tools
Model #: TLF05280
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN (MEGACOAT NANO) |
| Application | External Turning | Facing | Chamfering | Boring |
| Grade | PV710 |
| Insert Style | SNGG |
| Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 321 |
| Number of Cutting Edges | 8 |
| Insert Thickness (S) | 1/8″ |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | B |
| Cutting Edge Material | Cermet |
| Shape | Square |
