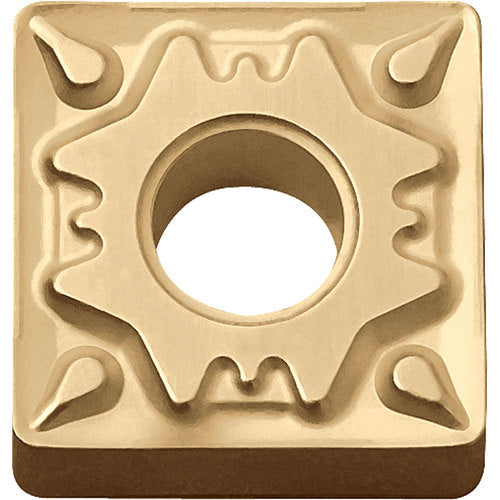

SNMG 433 HQ PV710, 3/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiCN (MEGACOAT NANO), Square, Turning Indexable Insert
Item #: KY918847582
Brand: Kyocera Precision Tools
Model #: TLF05329
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN (MEGACOAT NANO) |
| Application | External Turning | Facing | Chamfering | Boring |
| Grade | PV710 |
| Insert Style | SNMG |
| Fixing Hole Diameter (D1) | 0.2031″ |
| Corner Radius (RE) | 3/64″ |
| Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 433 |
| Number of Cutting Edges | 8 |
| Insert Thickness (S) | 3/16″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Chip Breaker Type | HQ |
| Cutting Edge Material | Cermet |
| Shape | Square |
